C.V. DIAGNOSTICS LTD

Scottish Company Reg. No SC344909 - V.A.T. Reg. No 948 3291 91

Commercial Vehicle & Trailer Diagnosis
42 Harbour Road, Inverness, U.K. - IV1 1UF
Google

Web www.cvcomponents.co.uk
C.V.Components Ltd

We are An Officially Appointed Distributor for Jaltest Diagnostics

We can supply and advise on all apsects of Jaltest Diagnostic Equipment along with other makes of diagnostics to suit :- H.G.V. - TRAILER - P.C.V.

We have a Specialised C.V. Diagnostics Vehicle covering the whole of Scotland and The North of England supporting our existing customers and promoting and selling Diagnostics Equipment.

If you are seriously considering investing in diagnostics then,:-

For A Demonstration in simple easy learning steps,contact me
- John (c.v.) Robertson Tel. 07774-242191.

C. V. DIAGNOSTICS LTD

.

Click Here To See What Do I get ?


Below The latest Jaltest Brochure is ready for you to click and upload. Also the latest Commercial Guide & The User Guide




V5 Hand Held User Guide          Sales Brochure                       Commercial Guide                P C Link User Guide



Click on the U14M Icon to download The Durabook Brochure


Buy Jaltest On - Line
Click Here to go direct to our Web Shop


Click on the picture for more information and costs on the DRA08 Sensor Tester & The DRA07T ISO Tester products :-

E.B.S./A.B.S. Sensor & Exciter Ring Tester
ABS Electrical Circuit Tester


DRA08 Sensor Master                DRA07T I.S.O. TESTER

To purchase A Sensor Master, Triple I.S.O. Tester or a Jaltest visit our web shop@www.cvcomponents.co.uk



Investors In Jaltest Diagnostics

To View A Complete list of Companies who have Invested in Jaltest Diagnostics from us Click Here.


CLICK HERE     For the V.O.S.A. Guide to ABS & EBS Including Systems Light Sequences


Click on the picture below to go direct to the Jaltest Spain web site.





Jaltest have an ongoing constant process of Research & Development, allowing the client 3 software updates per year for their diagnostic systems.These software updates can be downloaded from the Internet or installed by us using a USB Dongle. Jaltest have developed the most innovative & comprehensive diagnostics system, produced in Spain, for the worlds H.G.V. Diagnostics market.

The Jaltest System will diagnose on All makes of Commercial Vehicles, P.C.V. & Trailer Systems.

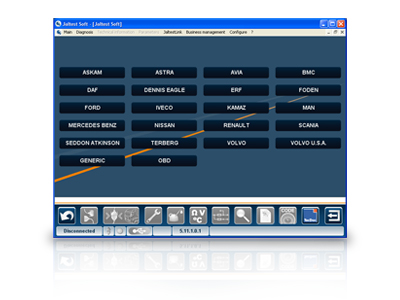

Volvo - Scania - Mercedes - Foden - DAF - Iveco - MAN - Wabco / Haldex / Knorr........
It will diagnose the engine, brakes, suspensions, ,WS maintenance systems,Co-ordinator, central computer,gearbox,calibrate clutch, disc pads, copy / paste, save trailer parameters........

To See JALTEST DIAGNOSTICS For Your Particular Vehicle Click On The Images below to take you direct to the Jaltest Applications Listing




To view a pdf file of the very latest Innovations for the 1st Software Update of 2013 click on the image Below.

The 1st Software Update for 2013, "C13.1.2.4" is now available to download from the Cojali web site.
C.V. Clients will get your usual dongle in the post or a personal visit from me.

Included in this download is E. T. M. - EBS TEST MODULATOR

UNIQUE TO JALTEST

End Of Line Test The EBS Modulator on the Vehicle

Checking of Wear Pad Sensor Cables
ABS Sensor Cables
Pressure Test The EBS Modulator
Modulator OK/FAIL

The ETM system is automatically downloaded from the latest C12.3.2 software and an ETM Logo can be seen on the bottom right of the Jalsoft screen
The ETM system is activated by a License Code and also purchase of the interface and cables kit.
E.T.M. is not a stand alone system, you must have Jalsoft installed and up to date for ETM to work.
A nominal extra cost for annual software license will be incurred for ETM.

To read all about ETM click on the picture.

--------------------------------------------------------------------------------

Software Update Instructions


ATTENTION
Due to safety reasons, the expert mode pin has been modified. Please, use the “Expert Mode” menu and follow the instructions provided in order to get the new code. If in doubt, please contact the Customer Service Department

If your version is 12.3.0.0 or higher, select the incremental update "JalTest Soft Update Pack (From 12.3 to 13.1)" in order to reduce the download and update times. For previous versions select full version "Jaltest Soft Setup (Full Version)". You can check the information about your unit version on the bottom left side of the software’s start screen. When the downloading process is complete, use a compression program such as Winzip or other similar software in order to extract the content and be able to install the latest version of JalTest Update.
It is advisable to download the file to your desktop.
IT IS STRICTLY MANDATORY TO DECOMPRESS THE DOWNLOADED FILE BEFORE RUNNING IT, OTHERWISE THE SOFTWARE MIGHT NOT WORK PROPERLY.
Once the program is downloaded and decompressed, double-click on the corresponding icon and the installation process will start immediately.
For further information, consult the User’s Guide that is included in the downloaded file.

System Requirements

--------------------------------------------------------------------------------
In order to install and work with JalTest Soft, it is required to have a JalTest hardware, either a JalTest diagnosis device or a JalTest Link interface.
Operative system:
Windows XP SP3, Windows Vista or Windows 7.
Minimum PC requirements:
- Microprocessor 1 GHz.
- 1 GB RAM.
- 3 GB free Hard Disk space
. - USB communications port
. - BlueTooth:
The connectivity via BlueTooth is guaranteed with the following external devices via USB which have been approved by COJALI S.L.
- Energy System, Linnker 1280 model.
- Neuss Bluetooth 2.0 USB Adapter.
- Conceptronic 2.0 USB Adapter (Class II).
If those devices are not used, there could be incompatibility problems. COJALI S.L. is not responsable for such problems.

If you are having problems with your software updates, or require your software license updated, we will be pleased to quote you.

* LICENSE CODE FORM *
Click Here to fill out a License Code Form

N.B. !! If your software is out of date Cojali will charge for back dates and also 1 years software updates in advance. It is vitaly important that you all keep your software up to date.This will enable Cojali and Us to give you Assistance and Technical Backup.

If you require a cost of a New Jaltest Diagnostics System or just wish to Upgrade from your present Hardware to the very latest V6 P.C. Link c/w a Durabook Laptop then please contact us;-

Should you have any problems downloading the software, then we can send you a USB 2Gb Dongle with the download on it for a fee of £15.00p + v.a.t. to cover P&P

* TECHNICAL ASSISTANCE *
Click Here
and complete this Technical Document then e-mail it to us for a response.
Remember your software license must be valid. !

John Robertson - t.01463-220232 ... f. 01463-710983...m.07774-242191... e-mail john@cvcomponents.co.uk


DIAGNOSIS

Allows to read the ECU failure memory by providing the user information about the error codes detected in it. Jaltest interprets the codes indicating:
The failure component (i.e. speed sensor).
Component location (i.e. right front wheel)
Type of failure (shortcircuit)
The number of times a failure has been detected.
If the error is present or not.
This function allows the user to carry out the deleting of the errors memory; logically if the error is present, it will be detected again by the ECU and it will be displayed in the following diagnosis.

MEASURE VALUES

Displays on the screen the values of the different sensors connected to the ECU. Depends on each system.

ECU DATA

It is the technical data of the ECU, serial number, software version, manufacturer's reference, etc. Depends on each system.

COMPONENTS ACTUATION

They are the direct tests that can be done with the system components. For example, actuate an ABS modulator, activate the suspension solenoid valves in order to raise or low the vehicle chassis,... It is the active diagnosis, which, for example for the engine, allows to carry out tests calibrating its state, like the cylinders balance, cylinders shut off or compression. Depends on each system.

CALIBRATION

Some systems ask to calibrate some components for its correct operation. The best example are the electronic suspensions, in which there must be stored the reference values so the ECU can make function correctly.

PARAMETERS

Some ECU can operate with different configurations. With this option you can copy configurations and parameters to the control unit, so control units can be programmed in its first installation. For certain systems even the modification of some parameters not affecting the vehicles security is allowed

.

RESET

This point refers to reset of the maintenance control units counters. If maintenance operations are done but maintenance alarm is not cancelled, the warning message referring to maintenance will keep on. Nothing to do with the memory error codes deleting, which is part of the diagnosis.

Indications on each system.

‘X’ --- The option is included in Jaltest.
‘T2, T3’ ‘10’ --- This function is being developed in the time or year indicated.
‘ ‘ --- (Blank space) The development of this function has not been planned in short term.
NF --- This function is not available for this system.
V --- New function or improvement.




C.V. DIAGNOSTICS LTD


C.V. Components Ltd & C.V. Diagnostics Ltd

Diagnosing Scotlands Transport Industry

Below The latest Jaltest Brochure is ready for you to click and upload. Also the latest Commercial Guide & The User Guide




V5 Hand Held User Guide          Sales Brochure                  Commercial Guide            P C Link User Guide



Click on the U14M Icon to download The Durabook Brochure


  • Intuitive and easy to use diagnostics.
  • Diagnosis leader in Trucks, Trailers and Buses
  • Global diagnostic solution.
  • Technical data.
  • Technical assistance.
  • Training and support.
  • Complete cables set.
  • Robust hardware and electronics.
  • Powerful update program.
  • The most complete technical data base for the workshop.
  • 25 languages.
  • Heavy duty vehicles’ specialist.
  • Workshop invoice management system.
  • Fleet control diagnostics.




    WABCO | HALDEX | KNORR - BOSCH

    Important ! ! :- The Jaltest can COPY & PASTE the parameters of Trailer ECU namely :-

    Wabco EBS C & D - Haldex EB+ & EPV - Knorr TEBS


    Wabco C & D - ECU   Haldex EB+ & G2 - ECU   Knorr TEBS4 - ECU

    The above function is only available in expert mode, which is available after signing an official contract and receiving appropriate instruction

    Jaltest Auto detects systems
    Jaltest gives a hard copy printed report
    Jaltest can modify ECU parameters. - Wabco VCS ECU to 4S/3M - 4S/2M - 2S/2M
    The above system is now obsolete and has to be re-placed using VCS 2 systems and once again Jaltest can set and modify the parameters of this system
    Jaltest can re-set the Air Drier on Volvo also Calibrate the Disc Pads and Clutch on Volvo
    Jaltest can Calibrate the Clutch on Mercedes/MAN
    Jaltest has 24V Line Protection
    Jaltest can copy and upload to a PC/Laptop Trailer Brake ECU Parameters also Truck & Trailer ECAS, ECU Parameters to store on file and download for future use, in the event of an ECU being broken and unable to copy & paste parameters.


    A JALTEST diagnosis can be carried out by C.V. Components Ltd & C.V. Diagnostics Ltd personnel on your premises as we have a designated Mobile C.V. Diagnostics Vehicle complete with on board technology delivering an official printed report immediately on test completion for your records.
    We have the ability to completely test a trailer without the need of a Tractor Unit
    Fast moving parts are carried on board this Mobile Jaltest Diagnosis Vehicle which is equipped with wheel chocs, an air compressor giving a regulated air supply via male/female couplings and an electical 24N, 24S & ISO test systems.
    This enables us to elliminate a faulty shunter / tractor unit.


    Alternatively you can contact the following companies, who have invested and purchased JALTEST from us and they will arrange a time & date and at an appropriate cost :-

    Investors In Jaltest

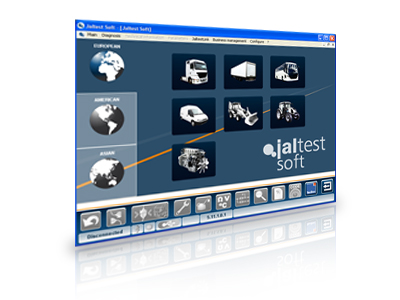

    JALSOFT IS A LAPTOP PROGRAMME WHICH BLUETOOTHS TO THE PC LINK OR HANDHELD UNIT ALLOWING A CLEARER VIEW OF THE DIAGNOSIS IN PROCESS AND GIVES THE OPPORTUNITY OF A HARD COPY REPORT FOR V.O.S.A. FILES, AS WELL AS WIRING DIAGRAMS, TORQUE SETTINGS, UPLOAD AND SAVING OF PARAMETERS, CALIBRATION..........



    If you are seriously considering investing in diagnostics then,:-
    For A Demonstration in simple easy learning steps, contact- C.V. Components Ltd - John (c.v.) Robertson Tel. 07774-242191.


    Click on the picture for more information and costs on the DRA08 Sensor Tester & The DRA07T ISO Tester products :-

    E.B.S./A.B.S. Sensor & Exciter Ring Tester
    ABS Electrical Circuit Tester


    DRA08 Sensor Master                DRA07T I.S.O. TESTER

    To purchase A Sensor Master, Triple I.S.O. Tester or a Jaltest visit our web shop@www.cvcomponents.co.uk



    * * Remember Every Day is A Learning Day * *



    The secret is in the service !!

    • We offer 24 Hour Emergency Parts Service for Breakdowns
    • Tel. 01463-220232 or 07774-242191 for John Robertson

    e-mail: john@cvcomponents.co.uk
